Here you have a list of all the workspace nodes available in the Automation Center, along with a breakdown on what they do and how they work.
For practical examples of how they can be put to use, please see the examples of program Blueprints.

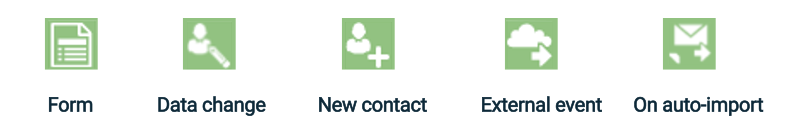

Transactional entry points
Email nodes in programs that start with a transactional entry node do not support Send Time Optimization.
This node allows your contacts to enter the program once they complete and submit the selected form. Only general registration forms can be selected and used here, and forms already in use by another program will not be available for selection.
Programs that start with this entry point follow the opt-in rules for transactional programs.
Here you can select an action based on a change to a specific data field (such as email address). When a contact triggers a change to that field, it causes them to enter the program. You can select system and custom fields here, with the only exception that certain fields which are filled in only once, such as ‘Date of first registration’, or dynamic fields like ‘Age’, cannot be used. Field values can be changed in many ways through data import, API call, manual change, and so on.
If a form is submitted containing field values that already exist, these will not be overwritten and the program will not be triggered. Only a change in the field value triggers the program, regardless of how it is changed.
This will add all new contacts in the account database to the program, regardless of how they were registered.
This node can only be used in one active program at any one time. However, it will not prevent new contacts from also entering other programs via other nodes, for example from a registration form.
Here contacts can enter a program if they are returned by an API call containing the same external event (you must first create the API call before you can use this node).
Programs that start with this entry point follow the opt-in rules for transactional programs.
If you include external data in the external event AP call, this external data will remain available for that contact throughout their journey through the program and can be used to personalize further emails.
Batch entry points
In this node you select a target segment to enter the program, which can be used as a starting point for an ad hoc batch program that goes through further actions before sending the email. When the program is activated, the segment will refresh and all the relevant contacts then proceed to the next step in the process.
Please note that you can only choose an existing Emarsys or Smart Insight segment here.
Here you can combine a Target segment and an Email node. When the program becomes active, the segment will refresh and the email will be launched.
This node allows the result of an auto import to trigger the next stage in a program as soon as the import completes.
Although the Automation Center can typically handle batches of up to 250,000 contacts, the performance of the On auto-import node may drop considerably for larger batches if there are a lot of columns in the import. To reduce the risk of your program being put into failsafe mode, you should break larger imports up into smaller batches or use the API.
Recurring entry points
This node combines a Recurring schedule and a Filter. At the scheduled time, the filter will run and all contacts returned will enter the program. For more information on segmentation please see the Filter section below.
The shortest interval allowed is once per day; if you need a more frequent schedule than this, please contact Emarsys Support.
Recurring batch email
A combination of Recurring schedule, Target segment and Email which means that at the defined time your selected segment is refreshed and the email is launched. For further information please see the Send email and Filter sections below.
A combination of a Target segment and a Filter. The filter displays all the date fields in your database along with the corresponding criteria (for example 'Is in the future', 'Is today', 'Is in the past', etc.).
Entry from another program
This node is used in conjunction with Finish and transfer, and the two in combination allow you to automate the transition of contacts from one program directly into another. This entry node starts a recurring program that runs once a day. It comes with a built-in Wait node that cannot be removed. In the Wait node you can select only the time of day that the program should run. It behaves like any other recurring program; that is, child campaigns are created for all the emails within it every time it is run.
Clicking this node will show a summary of all the programs connected to that program. New connections cannot be added or removed here, only via their respective Finish and transfer nodes.
Channel message nodes
In this node you select an email which will then launch according to the preceding nodes and program schedule. The email itself can be previewed or edited through opening the properties pop-up. If you open an email from a program, the program name is displayed at the top and you can return to the program via the linked program name at the top.
Emails which are not of the type On program event are also available for selection, but they will lose their recipient source and scheduling page once selected.
If you are using the SMS channel, you will also see this node. It triggers an SMS message to be sent whenever a contact reaches this node.
Mobile Engage push message
If you are using the Mobile Engage channel, you will also see this node. It sends the selected push message for the chosen recipient source.
Channel distribution nodes
Save contact list
This node collects contacts which pass through it into a contact list. You can specify the name of the contact list, and it will be created when you save the program.
- When the Add new contacts to existing list checkbox is checked, all the contacts that pass through the node are added to the same list. This is the default setting.
- If you uncheck this checkbox, the list is overwritten with every new entry. It only makes sense to uncheck it for programs starting with a recurring entry point, since this pushes a batch of contacts through at once. Otherwise only single contacts pass through (and the contact list will therefore only contain the most recent contact).
Click here for some examples of when to use this node.
Add to Web Channel
If you are using Web Channel, you will also see this node. It adds contacts who pass through it to the selected Web Channel campaign.
Remove from Web Channel
If you are using Web Channel, you will also see this node. It removes contacts who pass through it from the selected Web Channel campaign.
CRM Ads - add to audience
If you are using CRM Ads, you will also see this node. It adds contacts who pass through it to the selected CRM Ads audience.
CRM Ads - remove from audience
If you are using CRM Ads, you will also see this node. It removes contacts who pass through it from the selected CRM Ads audience.
Didn't respond to email
This node combines Wait node and a behavior filter. If no response to the email has been identified (for example by clicking a link or downloading images) after the defined time period, the contacts progress to the next stage. The behavior filter automatically references the email previous to it.
Didn't click link
This node combines Wait and a behavior filter. If a contact still has not clicked a link in the email after the defined time period, they progress to the next stage. When you use this node you need to choose from a list of links, which are taken from the email preceding this node.
Only trackable links and landing pages are shown. Add-ons and forms are currently not available for selection.
Time action nodes
Here you specify the delay in hours or days before the next step is taken in the program. You can also specify to wait until a specific day of the week.
If no filter criteria are applied, this node will display a single number showing the total contacts that have passed through the node.
If the node has potential exit criteria and can therefore act as a filter, two numbers will be displayed: "A->B", where A is the number of incoming contacts, and B is the number of outgoing contacts. The difference (A-B) is the number of contacts either currently in the wait period, or that have exited the program due to the filter condition.
All delays specified in days are counted as calendar days, not 24-hour units. If you specify ‘wait 1 day and send at 07:00’ the node will collect content that occurs between 00:00 and 23:59:59, which is then sent out at 07:00 the following day.
Calendar days are counted according to the default timezone of the account that launched the program. The timezone selected in a user's My Profile page is not taken into account.
Here you specify a fixed time and date in the future when the next step is run in the program. Contacts reaching this node are queued until that point.
Filter action nodes
Here you select from simple or combined segments which can be used as simple logic switches that allow you to split paths according to contact properties or responses. In order to use this node you have to have an existing Emarsys or Smart Insight segment that you can apply it to. You can use filters together by either having them on parallel paths (which in effect links them with the OR operator) or in sequence along the same path (in which case they are in effect linked with the AND operator). In each case you should bear the following in mind:
- Parallel filters mean that contacts can progress along two paths if the filters have been so configured. It is up to you to ensure that this does not happen.
- Sequential filters can incur performance penalties if you have a large contact database, and should be avoided where possible. Instead, combine all the criteria together in one filter, or combine multiple filters together in. See: Before you start building programs - Filters.
All contacts who are returned by the segment go to the next step of the program, those who are not are assumed to have exited the program.
Whereas the Segment node only allows contacts in the selected segment to proceed, this discards any contacts in the segment. In this way you can ensure that contacts do not receive the same email twice, for example.
Whereas the Segment node requires you to select an existing Emarsys or Smart insight segment, the Quick filter lets you choose a field and a value on the fly. This is a useful and time-saving way to fine-tune your program.
This node lets you add a segment to the path, which allows contacts to proceed if they are in the segment, and excludes them if not. This lets you filter out contacts using criteria which are not necessarily related to any other segments in the program.
This node effectively acts as a combination of the Segment and Exclude nodes, and as such is best used only when both functions are necessary.
Here you can split the program into different paths, with contacts randomly assigned to each path according to a % value that you set. You can add paths and change the % value while the program is active. However, you cannot delete a path once a contact has entered it. To stop further contacts entering a path, simply reduce the % value to 0. See: About how we assign contacts to paths for more information.
This is how you end your program, and all paths in a program require this as the final node. This node signifies that all contacts who reach it have exited the program.
Finish and transfer
This is an alternative function of the Finish node, which can be configured to forward participants to the entrance node of a different program. This function can be added to any program, there are no usage restrictions.
This badge is added to a program node when participation settings are applied. You can click on it to open the participation settings menu and change the settings using this icon.
Fast forward badge
This badge is added to Wait nodes when the program is in Test mode, when test contacts have arrived at the node and have been queued. You can click it to process all the queued contacts immediately.
